Eddy Current Testing
Ferroscope 308 – Advanced RFT System by Russell Technologies
The Ferroscope 308 is a cutting-edge Remote Field Testing (RFT) portable system from Russell Technologies, engineered for versatile Non-Destructive Testing (NDT) applications across ferrous and non-ferrous components.
Applications:
- Heat Exchanger Tube Inspection using ECT, RFT, and NFT methods
- Pipeline Inspection with I-Pit Probes (2"–6" internal access)
- Internal Pitting Detection using E-Pit Probes
- Boiler Water Wall Tube Inspection with the VertiScan™ System and TubeCAT™ Wall Crawler
- CUI (Corrosion Under Insulation) Detection using Bracelet Probes (for insulated or bare pipes)
- Carburization Detection with CIRC E-PIT Probes
- Superheater Exfoliation Detection via Partial/Full Saturation (Saturn) Probes and TT Technology
One Tool, Multiple Solutions
From tube testing to boiler tube and CUI inspections — the Ferroscope 308 offers an all-in-one NDT solution.
Hassle-Free Software Licensing
Enjoy perpetual, multi-device software licensing with no hidden costs — perfect for service providers and clients needing flexible, unrestricted access.
Product Brochures
Ferroscope TT
View DetailsECT/RFT/MFL/Flexible Array Probes
We supply all Tube Testing Probes that is compatible with Russell Tech Ferroscope model, Olympus MS 5800 and eddyfi ectane.
Applications:
- Flexible probe with single or dual exciter coils maximizes inspection length.
- High resolution RFT boiler and heat exchanger inspection probe
- Flexible design allows it to negotiate through bends and provides full 360 deg coverage.
- Available in different sizes and coil configurations.
Product Brochures
ET Saturn Probes
View DetailsMFL Probes
View DetailsNFT Probes
View DetailsRFT Probes
View DetailsFlexible Boiler Probe
View DetailsCollapsible Array probes
The Russell Collapsible Boiler Probe is an advanced Remote Field Probe with swage entry capability that enables to inspect the tubes behind swage reductions with maximum sensitivity. The probe’s flexible design allows it to collapse through swage reductions and expand to nominal diameter behind the swage.
The 3” probe, for example, has the ability to smoothly collapse down to 1.55” diameter. By staggering the detector coils and separating them into two groups on each side of the probe’s exciter, the probe eliminates blind spots and provides full 360° coverage. The spring-loaded mechanism of the probe ensures that the detector coils are placed near the ID of the tube for maximum defect sensitivity.
Product Brochures
Collapsible Boiler Probe

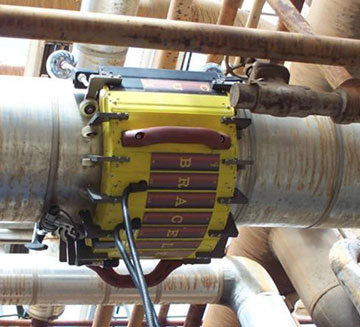

View DetailsBracelet Probe (CUI)
Suitable for rapid corrosion screening of piping and used with 16 channel Ferroscope unit.
Applications:
- Corrosion Under Insulation.
- Near & Far Surface Wall Loss.
- Localized & Clustered Pitting.
- Piping and plate applications.
Bracelet Probe
E-Pit (External Pipe Integrity Assessment Tool)
E-PIT™ Tools are designed to inspect tubes & pipes from the outside surface to detect internal (ID) & external (OD) defects. This is useful for situations where a pipe must be inspected before it is taken out of service.
E-PIT™ can inspect through coatings (e.g. Yellow Jacket™) of up to 0.200” (5mm) thickness
E-PIT™ Tool Applications:
- Detection of ID & OD defects in pipelines without need to remove coatings.
- Detection of ID & OD defects in boiler water wall tubes.
- Detection and sizing of ID & OD defects with equal sensitivity.
Product Brochures
E-PIT

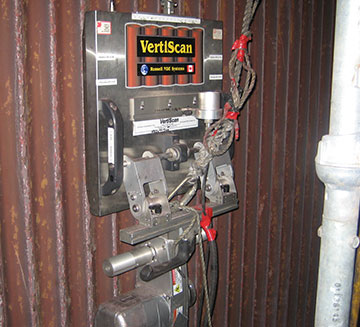

View DetailsVertiscan
The VERTISCAN Rapid Inspection System for Boiler Water Wall tubes and the TubeCATTM Magnetic Wall Crawler Delivery Vehicle.
Applications:
- Wall Loss.
- Graphitization.
- Internal pitting.
- Thermal fatigue
- Soot blower erosion
- Blisters; flame erosion
- Hydrogen attack and Chelant corrosion.
